June 8, 2010

How to Build a Heavy Rail Red Line


A potential Metro/MARC/Bus Transit Terminal along the Amtrak tracks at Edison Highway belies the MTA's contention that heavy rail is more expensive than light rail (Bayview is in background)

A Sun editorial of May 3rd repeats the oft-told falsehood about the MTA's Red Line opposition. That is, the Sun states that heavy rail would be "pricier" than light rail. So it must be repeated again: The Sun is absolutely wrong. A heavy rail plan would actually be far less expensive than the MTA's $1.8 billion light rail plan, in addition to being far more rational.

The Sun falls into this trap because they follow the same philosophy the MTA did in proposing their abominable one reversible track tunnel for the Red Line. The MTA previously proposed a one track tunnel because of their philosophy that it is OK to propose something cheaper and crummier in order to hammer out something that works on paper, and worry about the consequences later. That has been the overall reasoning behind their entire 15 mile Red Line proposal, most visibly by using undersized vehicles and squeezing the line onto Edmondson Avenue and Boston Street where it really does not fit.

A much better philosophy would be to build each rail transit segment right, with increments of as small as two miles apiece or even less, added onto what is already in place. Virtually every successful modern rail transit system in the world has been built through incremental expansion, rather than starting at square one with every new project as the MTA wants to do.

Each high quality segment would then become a solid foundation for building the next piece after that. A two-mile extension of a 16 mile line would create an 18 mile line. With the next two mile extension, it would become a 20 mile line. Baltimore is actually in a great position to build it this way because we already have the necessary solid foundation in the existing heavy rail subway, built to far higher quality standards than what the MTA now wants with its Red Line.

Inexpensive East Baltimore Extension

The MTA could easily build a very short inexpensive heavy rail extension beyond Hopkins Hospital that would leverage the entire 16 mile heavy rail system already built to Owings Mills, gaining the new ridership for many very long and wide-ranging trips from simply building a very short extension.

1.3 mile Metro extension along Amtrak from Hopkins Hospital to Edison Highway

Connectivity would grow geometrically. The entire heavy rail line could then be easily accessible, in the fastest possible way, to the MARC commuter rail system northeastward to Harford and Cecil Counties and southwestward to Washington DC. A truly comprehensive transit hub could finally be provided at the east terminus of the rail line, centrally located to serve virtually all major bus lines in east and northeast Baltimore, as a symmetrical compliment to the current Mondawmin hub. This connectivity would allow much of the MTA bus system to be restructured to take maximum advantage of the travel time advantage of the subway, as well as connecting the bus routes to each other and creating one place in northeast Baltimore from which you could get anywhere. Downtown bus traffic could finally be cut significantly.
Yes, the MTA is currently in the process of studying a heavy rail extension from Hopkins Hospital northward to Morgan State as part of a previous proposal to send it all the way out to White Marsh and Middle River. But they have buried this study, despite it being labeled "high priority", because it fails for the same blanket reason they have condemned all heavy rail. It proposes too much too soon, with too much of it underground which makes it far too expensive.

Instead, the heavy rail extension should go eastward where it can come out of the ground very quickly along the Amtrak tracks, and it can be terminated anywhere that a comprehensive transfer hub and MARC station can be located most feasibly, such as Edison/Monument or Bayview.

Finding the best location for a new East Baltimore MARC station is critical. The MTA wants to try to convince Amtrak and Norfolk Southern to let them build two new MARC stations only a couple miles apart, one at Bayview and one at Broadway, for the Red Line and Metro respectively. Extending the heavy rail line along the Amtrak tracks would mean the MTA would only need to build one new MARC station wherever it works best, with the fastest possible connection to downtown and the rest of the transit system. Travel time from MARC to downtown could be as little as five to six minutes.

After community cajoling, the MTA did have their consultants "cost out" a three mile Metro extension from Hopkins Hospital to the Baltimore Travel Plaza south of Bayview, at $700 million. This seems like a reasonable cost that a line that would result in a huge increase in transit system connectivity, but they could build far less than that in a first phase and still make sense. But of course, the MTA rejected this whole concept out of hand even before they made a single stab at analyzing it, unlike their own pet Red Line alternatives for which they tortured the data continuously until they got the numbers to work, even after they submitted it to the feds.

Inexpensive West Baltimore Extension

Similarly, a very short and inexpensive heavy rail extension could be built from Lexington Market to the existing West Baltimore MARC station in the Franklin-Mulberry corridor, where it would similarly leverage the entire bus and rail systems, including MARC to Washington. All of West Baltimore would then be easily accessible to the entire existing Metro, including State Center and Hopkins Hospital, as well as all the bus connections elsewhere along the line.
1.8 mile Metro extension along Franklin-Mulberry corridor from Lexington Market to West MARC Station

The Lexington Market station could then become the comprehensive central hub it was originally intended to be. An inexpensive new escalator connection could be provided over to the light rail line on Howard Street, and a downtown bus hub could be located on a state-owned parking lot connected to the station along Eutaw north of Saratoga.

In contrast, the MTA Red Line plan avoids their Lexington Market subway station altogether, largely giving up on creating the transit oriented district that has been envisioned since the 1960s inception of rail planning, in favor of new transit-oriented dreams for waterfront land that has largely already been redeveloped. In addition, the MTA plan wedges the Red Line into the median strip of the Franklin-Mulberry "highway to nowhere" as inexpensively as possible, with only the same old promise that eventually the ill-conceived and obsolete expressway would be "capped over" for new development, rather than rebuilding the corridor right as an integral part of the transit plan.

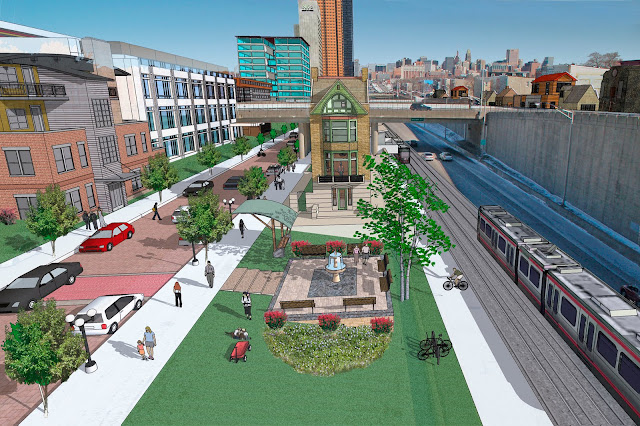

True transit-oriented development in the Franklin-Mulberry corridor as envisioned by BaltiMorphosis.com

Building blocks for the future

The short and affordable east and west Baltimore segments would be perfect launching pads for future extensions that could be built whenever we can afford them, and whenever we get a transit agency that is smart enough to plan them. Unlike Morgan State or Edmondson Avenue, the proposed heavy rail extensions would be located in existing rail corridors where they can be extended without wedging them into congested city streets or building lengthy expensive tunnels.
In East Baltimore, there are existing rail right-of-way corridors into Highlandtown, Canton, Dundalk, Essex, Middle River and White Marsh, so a whole tree of rail transit branches off the proposed trunk could easily be built.
In West Baltimore, the Amtrak corridor proceeds southwestward to the huge underutilized Southwestern High School site and FredHilton, gaining access to additional large potential transit markets. A relatively short tunnel mostly under cemeteries could bring the line back up to Edmondson Village and emerge from underground in Baltimore National Pike (US 40) just west of Cooks Lane, where it could eventually go all the way to Howard County. A simple branch to Security could also be built at the Beltway, simply incorporated into the inevitable Beltway reconstruction project when its untenable four level interchange at I-70 is torn down.

In contrast, the MTA Red Line could never be feasibly extended beyond Security Boulevard without running disruptively into Baltimore County's anti-sprawl urban growth boundary. On the east side, the MTA's meandering "button-hook" alignment to Bayview clearly precludes their previously proposed future extensions from ever being feasible. Moreover, the MTA Red Line's slow overall 44 minute travel time estimate already clearly slams up against the outer threshold of tolerability for a modern urban rail line.

So the MTA Red Line shoots it wad all at once - $1.8 Billion for an isolated, disconnected and unexpandable Red Line.

Next steps

The Red Line has become an ever more expensive monster based on the MTA's demonstrated illogic of starting its new transit line at square one, ignoring the need to fix what they have, and making a host of new mistakes that will somehow have to be fixed later. Their Red Line doesn't connect with or take advantage of what they've already built, and to make up for that, they feel they need to spend $1.8 billion (and rising) all at once to build something that passes muster with their own faulty logic and numbers games.

The only prudent course would be to scrap the MTA's light rail Red Line, in favor of a plan that affordably adds onto their existing heavy rail system, several miles and a few hundred million at a time, in order to grow the system in a comprehensive connected manner.

But as long as the MTA can somehow convince people like the Sun that heavy rail is too expensive, we will continue be get a fragmented series of MTA mistakes that cost too much, disrupt communities during and after construction, and need fixing as soon as they're done. It's time to end the MTA Red Line madness and instill some sanity in our rail transit planning, one smart segment at a time.
